Plastic Incinerator Waste Tire Recycling Machine 12tpd Batch/Semi-Continuous Pyrolysis Plant
Our Workshop
Company Profile:
Xinxiang Lefilter Filter Corp.,ltd Shangqiu Branch is a collection research and development,production,sales and after-sales service in one of the specialized,intergrated company. We're specialized in producing waste tyres pyrolysis machine, waste plastic pyrolysis plant,waste rubber pyrolysis equipment, oil sluge pyrolysis machine, Waste tyre Oil/plastic oil,waste motor oil distillation plant,and Municipal Solid Waste Sorting Machine.All of the machines aims to manage waste and recycle them to energy or other resource,which meet our mission.We have first-class sales team,professinal technical team,efficient production systems and have a perfect customer service system.We are a professional organization mainly engaged in the recycling of waste plastics, tires, oil sludge, waste rubber and other waste resources, with more than 10 years of experience. Holding several items of China national patents , CE and ISO related with our technology and equipments. Our company has provincial research, development center of technical equipment converting scrap tire, rubber and waste plastic into oil through pyrolysis reaction and engaging in technology research and program development. Through unremitting efforts, the technology has gradually improved. The product has covered national market and exports to foreign countries. Our equipments have been exported to India,USA, Brazil,Russia,Turkey,Egypt,Nigeria,Thailand, Indonesia, Australia, England, etc.The products are distributed in 78 countries and regions at home and abroad,and are widely praised by customers.
Product Description
Pyrolysis equipment is a recycling machine for solid waste like waste tyre, waste plastic ,oil sludge ,MSW, medical waste etc .It can recycle waste to energy ,such as fuel oil ,carbon black and flammable gas. Besides this energy ,waste tyre pyrolysis plant also can get wire steel after processing.The waste tire oil refining equipment will split the waste tire at high temperature to obtain tire oil, carbon black and steel wire, so as to realize the maximum recycling of waste resources. This series of refining equipment is an environmental friendly and pollution-free thermal cracking treatment method for waste tires. Lifeierte Shangqiu Branch is a professional and technical production enterprise, which has been focusing on the effective utilization of waste for many years. The reaction kettle is made of professional boiler plate steel Q345R, 16 / 18mm thick,which has the features of high pressure resistant , can bear 20-25Pa pressure. The cooling effect of the box cooler during the operation of the equipment can reach 180m, and the oil yield can reach 40% - 45%.
Main Products:
(1). Batch Pyrolysis Plants
Performance Feature
Whole tyre feed,no need to break, which reduces cost.
Adopt multilevel cooling circulation to get more fuel oil.
Discharge process through pulse dust removal processing,no dust emissions.
Easy operation,high efficiency and 2-3 people to operate.
Plant adopts fully automatic submerged arc welding process,through x-ray detection, to improve the security of plant.
Technological Process
Tyre transported to reactor by conveyor to pyrolyze.
Oil and gas from pyrolysis go into gas-liquid separating tower and separate, and enter into condenser to liquify , to get fuel oil, then enter into oil storage tank.
Coarse carbon black and steel wire from pyrolysis are output by automatic slag remover, transported to carbon black processing system by cooling hoist. Separate steel wire and carbon black through the magnetic separator,to get industrial carbon black and steel wire.
Steel wire pulled out by winch,compressed into pieces,and do steel scrap process.
Flammable gas enter into waste gas tank and processed. Then extracted by vacuum pump, enter into water sealed tank and send to hot air furnace to burn.
(2). Semi-Continuous Pyrolysis Plants
Performance Feature
Integral design, no need to precast foundation, quick and easy installation.
Airtight high temperature material feed, saving heating time and reduce the temperature loss.
Adopt multilevel cooling design to get more fuel oil.
Hot air heating, unique heat cycle design, heated more evenly, reducing the operating cost.
Airtight high temperature slag, no dust, clean and environmentally friendly.
Technological Process
Broken tyre transported to feeder firstly by conveyor, then to reactor.
Oil and gas from pyrolysis go into gas-liquid separating tower and separate, and enter into condenser to liquify , to get fuel oil, then enter into oil storage tank.
Coarse carbon black and steel wire from pyrolysis are output by automatic slag remover, transported to carbon black processing system by cooling hoist. Separate steel wire and carbon black through the magnetic separator,to get industrial carbon black and steel wire.
Shatter carbon black, to get industrial carbon black after deeply processing. Steel wire compressed into a piece of scrap processing.
Flammable gas enter into waste gas process tank to desulfur. Then extracted by vacuum pump, enter into water sealed tank and send to hot air furnace to burn.
Comparison of different Operations:
| No | Operation | Description |
| 1 | Batch Type | Δ Capacity 5T-15T per day , Low investment cost ,Can be loaded with whole tires , no need for shredding. Δ Auto screw carbon discharging , no dust flying , high efficiency. Δ Modular design condenser , more convenient for installation and transportation , Furnace door (shape and size) can be designed based on client requirement. Δ Special emission purification system. |
| 2 | Semi-Continuous Type | Δ Capacity 15-16T per day, Auto feeding system. Materials needs to be shredded smaller than 50mm. Δ Loading under high-temperature, no need to wait for reactor cooling. Fully enclosed production system. Δ Auto screw carbon discharging , no dust flying , high efficiency. Δ Special emission purification system. |
3 | Fully Continuous Type | Δ Capacity 20-25T tires per day , materials needs to be smaller than 20mm. Auto feeding and auto carbon discharging 24 hour per day. Δ Whole equipment adopt modular design, assembled in fabrication factory, greatly shorten installation period. Δ No need for foundation, easy to be transported to another project. Δ Fully enclosed production, special sealing system to guarantee safety of operation ,no bad smell generated ,no dust flying. Δ Special emission purification system. |
Product Parameters
1. Main Project Report of Pyrolysis plant :
| No. | Items | Contents |
| 1 | Input-Raw Materials | Waste tire/rubber/plastic/Medical waste/municipal solid waste/waste organic glass |
| 2 | Final products | Fuel oil, carbon black, steel wire,flammable gas. |
| 3 | P/N. | LES-2600*7500 |
| 4 | Capacity/24h | 12Ton/Batch |
| 5 | Oil production(T)/24h | 4 |
| 6 | Power(KW) | 7.5 |
| 7 | Cooling water(T/h) | 6 |
| 8 | Rotate speed(r/min) | 0.4 |
| 9 | Heating type | Direct heat |
| 10 | Cooling type | Water-cooled |
| 11 | Noise(dB) | <=85 |
| 12 | Operating | Intermittent |
| 13 | Driving mode | External gear |
| 14 | Reactor material | Q345R |
| 15 | Structure | Horizontal rotation |
| 16 | Host weight(T) | 26 |
| 17 | Reactor size(mm) | Ø2600*7500 |
| 18 | Combustion value | 35-50m3 |
| 19 | Certification | CE ISO SGS BV |
| 20 | Land request | 300-400m2 |
| 21 | EU emission standard | 100% non-pollution |
2.Available fuels and specific data for pyrolysis:
| No. | Item | Consumption |
| 1 | Coal(for choice) | 500kg/day |
| 2 | Wood(for choice) | 500kg/day |
| 3 | Natural gas(for choice) | 400m³ |
| 4 | Oil(for choice) | 300-350kg/day |
| 5 | Electricity | 200kwh/day |
| 6 | Water(recycled) | 60m³/month |
| 7 | Total power | 20kw |
| 8 | Land area | 30m*10m |
Products Process
1.Process technology of pyrolysis plant :
1). We have hydraulic feeding system for filling tire to the reactor .The waste tire burned to 180°C, pyrolysis oil coming out ,for about 2 hours ,waste gas come out and can use flammable gas to burn the reactor. When temperature raise to 350°C, the oil comes out heavily like a harvest Autumn. Burning going on for 8-10 hours, starts cooling the reactor.
2).Oil gas moves to Oil gas separator to separator heavy oil from oil gas as first filter.
And then move to the damping tank, it's use to separate carbon black to avoid it's flow into the tube in condenser to avoid the tube block .
3).Box condenser is the main part of the whole pyrolysis process. It affects the oil yield of waste tire. We're proud of this condenser. Because it has good performance and easy to fix. It's our strength comparing to other manufacturers. 1.It has large cooling area in 5.7x2.7x1.5 meters. 2. And the tube is bonder than tubes in condenser tank. Their tubes are 20mm big and ours keeps for 133mm big. Their tubes used for a short time ,tubes are easily blocked and hard to clean. 3.What's more the tube is connected one by one by flange, whole tube has 180 meters long, oil gas has long time traveling in tube and can have a better cooling effect.Then oil gas turns into oil and stock into oil tank. After cooling ,some flammable gas moves into water seal to make gas clean and water seal is important part to keep safe operation in the process.
4).Coming out from water seal, the flammable gas is used to burn to make the tire pyrolysis fast and fast. Cooling time for reactor will be 6 hours around.
2.Main parts and function:
1). Name:Pyrolysis system--Reactor
Material: A. Q345R steel professional for boiler
B.Stainless steel:304 and 316 materials
Function:The waste tire, plastic and rubber can be cracked in the reactor.
2). Name:Hydraulic feeding system
Function: Feeding the raw materials by using auto-feeding machine. the auto feeder can push large plastics and whole tyres in the reactor by using hydraulic pressure as power which has 80 tons push power, the process is easy to operate and convenient. Save labors and save a lot of manual feeding and discharging time, finish feeding in1~ 2 hours to improve production efficiency.
3). Name:Cooling System
Function: The oil gas is cooled separately by condenser, to convert the oil gas into oil.Cooling more thoroughly,higher oil yield,better oil quality.
Type:A.Box Condenser
Function: Box condenser is produced with 8 pcs 133mm tubes and 17 pcs 108 tubes,25 tubes totally can guarantee the high yield and not easily blocked .The length of oil gas will be arround 180m in the tubes and have enough time to cooling down the oil gas to oil.It is conducive to heat dissipation and ensure cooling effect. Convenient installation and maintenance, long gas cooling time, thick condensing pipeline and not easy to be blocked.
B. Tubular Condenser
Function: The utility model has the advantages of simple and beautiful structure, convenient maintenance and large cooling area.
4). Name:Carbon Black Discharging System and Carbon Black Collection System
Function:We adopt the whole sealed automatic discharging system to ensure no carbon black flying out,so the whole process is no pollution at all.
5). Name:Dust Removal System
Function:Dispose of fuel gas caused by using wood,coal,oil or natural gas.
6). Name:Waste Gas Recovery System
Function:Full combustion after recovery,saving fuel and maximizing resource utilization.
Raw materials and End products
1.Raw Materials
| Waste tire | 40-45% | Steel tire, canvas tire, etc. the engineering tire is large in size and needs to be cut, broken and then cracked. |
| Waste rubber | 35% | Such as rubber cable leather, rubber sole, conveyor belt, rubber track, etc. |
| Waste chemical fiber carpet | 30% | |
| PMMA | 80-85% | Plexiglass, acrylic, etc. |
| PE material | 95% | Industrial packaging film, pharmaceutical and food packaging film, daily necessities, building materials, wires, cable insulation skin, etc. |
| PP material | 90% | Woven bags, packing bags, injection products such as food utensils, basins, barrels, bottle caps, car bumpers, etc. |
| PS material | 90% | CD, CD case, tape case, foam product, home appliance shell, etc. |
| ABS engineering plastics | 40% | |
| Sludge | 70-80% | Oil-fiele contaminated soil |
Aluminum plastic | It depends on the raw material | All kinds of food,mediicine packing bags,precision electronic board anti-static packing,color printing factory materials. |
| Waste clay | 40-70% | All kinds of waste white soil filtered through oil. |
| Circuit board | 10-35% | Various electronic products |
| Capacitance | 5-30% | Various electronic products |
| Coal tar | It depends on the quality | The viscous liquid produced during coal distillation. |
Note: 1. PVC and PET materials are not easy to refine 2. The oil delivery rate of big car tire is slightly higher than that of small car tire 3. The oil yield of the materials listed above are all laboratory data, and the raw materials are dry, clean and free of other inorganic materials (water content, inorganic impurity content are not more than 5%) test data. | ||
2.End Products
1).Fuel oil
2).Carbon black
3).Steel wire
3.Product Usage
4.Final Products Use:
| Final Products | Yield | Application |
| Fuel Oil | 40-45% | 1.Heating material : sell to cement factory, glass factory, Ceramic factory, electric power factory, steel making factory , boiler factory, etc.2. Used for heavy oil generator for electricity generation. 3. Deep process it into diesel oil by oil distillation machine, then can be used in cars , trucks, tractors, etc. |
| Carbon Black | 35-40% | 1. Make it into pellet or briquette as heating material. 2. Make it into N220, N330, N550 or N660 which is widely used in tire making industry. 3. Make it into plastic grains then sold to plastic industry. |
| Steel Wire | 15-25% | 1. Sell it to iron and steel factory directly. 2. Sell it to steel distributors. |
| Flammable Gas | 8%-10% | 1.Recycled into furnace to heat reactor instead of coal/wood/oil/naturalgas.2.Store it then supply the pyrolysis equipment heating ,it's recycling. |
Profit Analysis
Profit Analysis for your reference:
Note:A . This analysis is made with capacity of 10tons tire per day per batch.
B. Please modify relative prices according to your actual market conditions.
| NO. | ITEM | DETAILS |
| 1 | Daily Capacity | 10TPD |
| 2 | Raw Materials | Waste tire |
| 3 | Cost of tires | 10T*1000¥/T=10000¥ |
| 4 | Fuel Cost | 0.45T*1200¥/T=540¥ |
| 5 | Labor (Daily) | 3P*200¥/D/P=600¥ |
| 6 | Electricity & Water | 200¥ |
| 7 | Other | 100¥ |
| 8 | Total Cost | 11440.00¥ |
| 9 | Oil Income | 10T*40%*2500¥/T=10,000.00¥ |
| 10 | Steel Tire Income | 10T*15%*2600¥/MT=3,900.00¥ |
| 11 | Carbon Black Income | 10T*35%*300¥/T=1,050.00¥ |
| 12 | Gross Income | 14,950.00¥ |
| 13 | Daily Net Income | 14,950.00¥−11,440.00¥=3,510.00¥ |
| 14 | Monthly Net Income | 3,510/Day*25D=87,750.00¥ |
| 15 | Yearly Net Income | 87,750.00¥/M*11M=965,250.00¥ |
To offer a proper quotation,kindly confirm following questions:
1.Raw material :Waste tyre or plastic ?
2.Production capacity ?(ton/day)
3. What's the burning material ?(Choose wood, coal, oil or natural gas as combustion materials,which one?)
4.What kind of pyrolysis equipment?(Batch or Semi-Continuous Type?)
5.What's your plan for this project ?
Do you have any special requirements? Our products can be customized.
Why Choose Us:
1. More than 10 years experience in pyrolysis technology
2. Professional installation and manufacture team
3. Rich experience in foreign trade

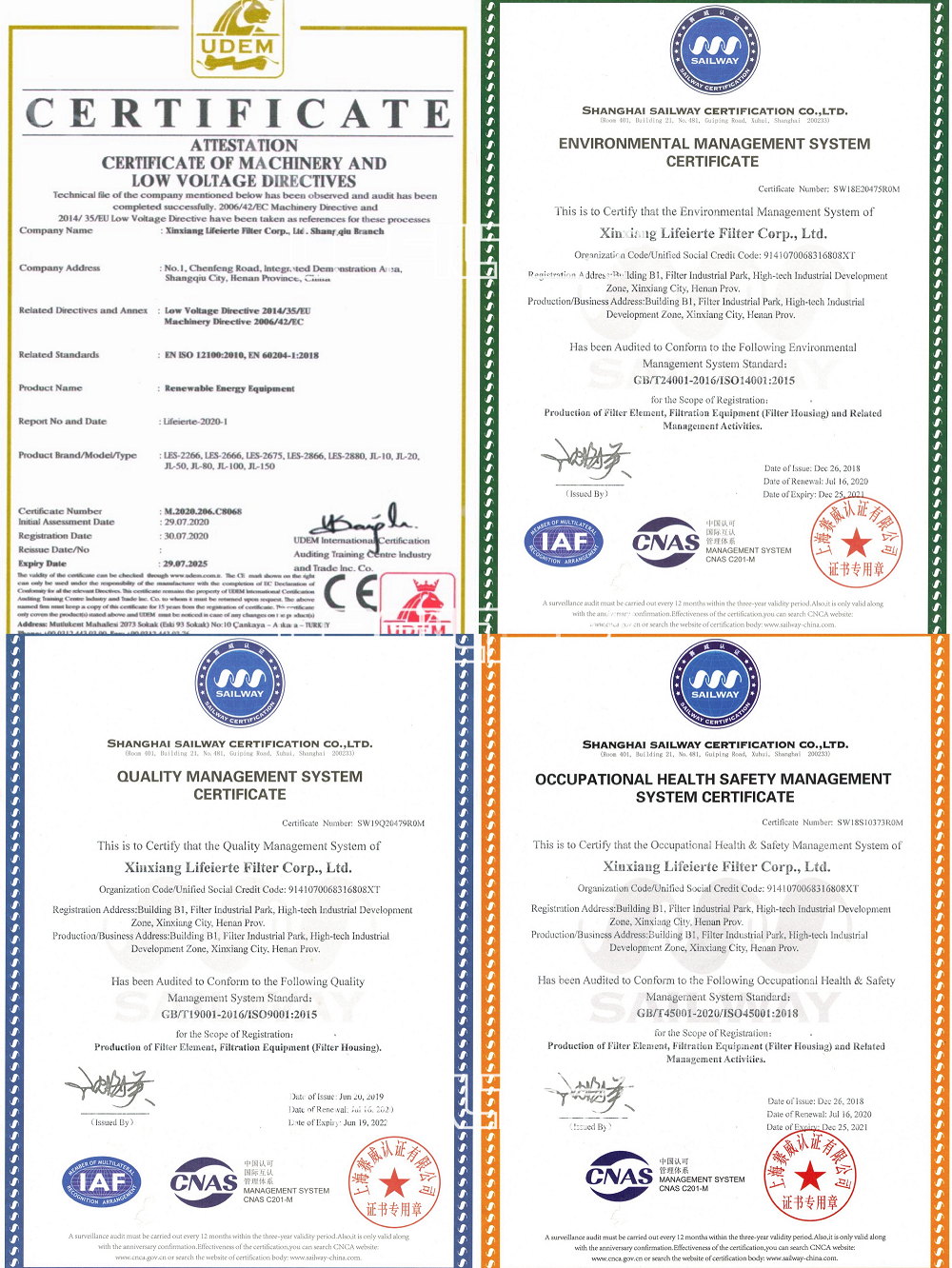

4.Holding several items of China national patents , CE and ISO related with our technology and equipments.
If you want to know more information about the pyrolysis plant and other machinery, pls do not hesitate to contact us.Hope to have the chance to coorpation with you in the future.
