Waste Oil Sludge Pyrolysis Plant

Brief introduction:

Lefilter waste oil sludge recycling equipment uses thermal decomposition technology to decompose macromolecules into smaller molecules when high temperature,after pyrolyzed,the oil sludge can be made into fuel then reused.

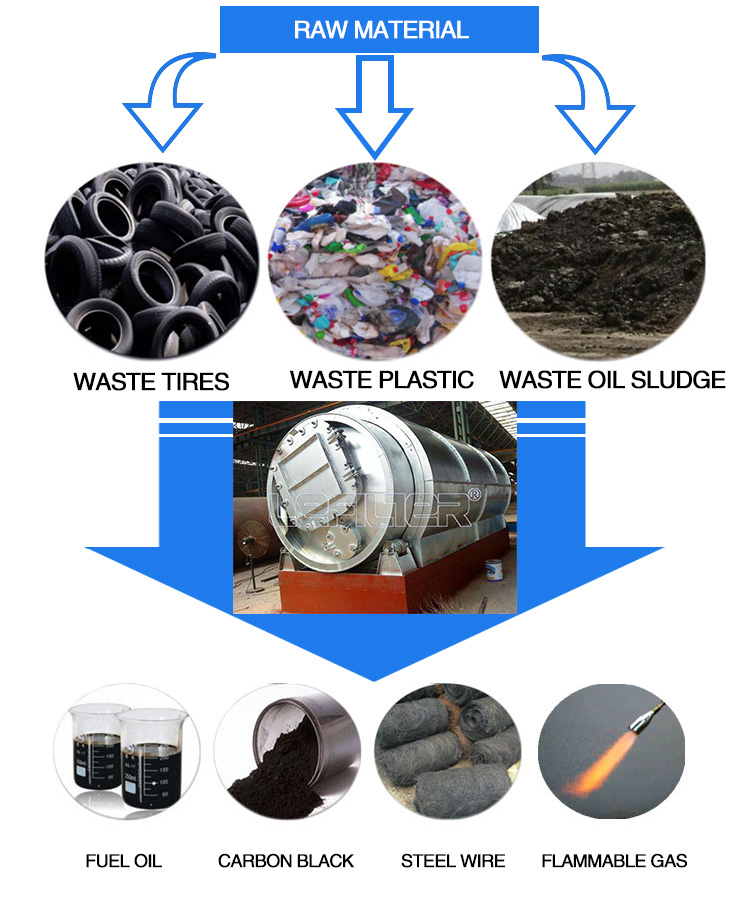

It is 100% recycling equipment, not only a profitable business, but also helpful for improving the local environment, avoid garbage pollution.For 1T waste tire,it can produce final products which have different valuable application as below:

Final ProductsYieldApplication
Fuel Oil45%-55%1. Heating material:sell to cement factory, glass factory, ceramic factory, electric power factory, steel making factory, boiler factory, etc.
2. Used for heavy oil generator for electricity generation.
3. Deep process it into diesel oil then can be used in cars,trucks, tractors, etc.
Carbon Black30%-35%1. Make it into pellet or briquette as heating material.
2. Make it into N220, N330, N550 or N660 which is widely used in tire making industry.
3. Make it into plastic grains then sold to plastic industry.
Steel Wire30%-35%1. Sell it to iron and steel factory directly.
2. Sell it to steel distributors.
Flammable Gas8%-10%1.Recycled into furnace to heat reactor instead of coal/wood/oil/natural gas.
2.Store it then supply the pyrolysis equipment heating,it’s recycling.

Technical Data:

Input-Raw MaterialsWaste tire/rubber/plastic/Medical waste/municipal solid waste/waste organic glass
Final productsFuel oil, N220, N330 carbon black, steel wire, flammable gas.
Capacity/24h6-7Ton/Batch                8 -9Ton/Batch                10-11Ton/Batch                12-13Ton/Batch
                Oil production(T)/24h                2.7-3.2                3.6-4                4.5-5                5.4-5.8
                Power                4KW                4.5KW                5.5KW                7.5KW
                Cooling water(T/h)                4                5                6                8
                Rotate speed(r/min)                0.4
                Heating type                Direct heat
                Cooling type                Water-cooled
                Noise(dB)                ≦85
                Operating                Intermittent
                Driving mode                Internal gear                External gear
                Reactor material                Q345R/Q245R/310S+Boiler plate/Stainless steel
                Structure                Horizontal rotation
                Host weight(T)                20                23                26                28
                Reactor size(mm)                Ø2200*5100                Ø2200*6000                Ø2600*6600                Ø2800*6600
                Space needed                200-300 square meters (Width:10m, Length:20m-30m)
                Combustion value                35-50m3
                NoteWe supply customized plant,we need some basic information:
What kind of raw material to recycle?
Tires for car, truck, motorbike...
Plastic of PVC,PE, PP,PS,ABS,bags,acrylic,rubber, medical waste, oil sludge industrial waste material...
>What capacity do you need to recycle per day?(Ton)
What fuel do you use?
