Attribute:

P/N. LES-2666
Input material Waste tyre/Scrap tyre
Output products Fuel oil carbon black steel wire flammable gas
Capacity/batch 10-11 tons/day.
 Land request 200-300 m2
Certification CE ISO SGS BV
Material of reaction kettle Q345R/Q245R/310S+Boiler plate/Stainless steel.
Cooling system BOX condenser
Emission standard 100% non-pollution

best pyrolysis plant in China for wast tire

best pyrolysis plant in China for waste tire

Lefilter batch type waste tire pyrolysis plant uses pyrolysis processing technology to decompose macromolecules into smaller molecules when high temperature.
Waste tyre pyrolysis plant is 100% recycling equipment, not only a profitable business, but also helpful for improving the local environment, avoid garbage pollution.For 1T waste tire,it can produce final products which have different valuable application as below:

Final Products

Yield

Application

Fuel Oil

45%-55%

1. Heating material : sell to cement factory, glass factory, ceramicfactory, electric power factory, steel making factory , boiler factory, etc.
2. Used for heavy oil generator for electricity generation.
3. Deep process it into diesel oil by oil distillation machine, then can be used in cars , trucks, tractors, etc.

Carbon Black

30%-35%

1. Make it into pellet or briquette as heating material.
2. Make it into N220, N330, N550 or N660 which is widely used in tire making industry.
3. Make it into plastic grains then sold to plastic industry.

Steel Wire

30%-35%

1. Sell it to iron and steel factory directly.
2. Sell it to steel distributors.

Flammable Gas

8%-10%

1.Recycled into furnace to heat reactor instead of coal/wood/oil/naturalgas.
2.Store it then supply the pyrolysis equipment
heating ,it’s recycling.




best pyrolysis plant in China for wast tire

Items  Waste Tyres Pyrolysis Plant
Input-Raw Materials Waste tire/rubber/plastic/Medical waste/municipal solid waste/waste organic glass
Final products Fuel oil, N220, N330 carbon black, steel wire, flammable gas.
P/N LES-2266 LES-2666 LES-2675
LES-2866
LES-2880
Capacity/24h 6Ton/Batch 10Ton/Batch 12Ton/Batch 15Ton/Batch
Oil production(T)/24h 2.7-3.2 3.6-4 4.5-5 5.4-5.8
Power 4KW 4.5KW 5.5KW 7.5KW
Cooling water(T/h) 4 5 6 8
Rotate speed(r/min) 0.4
Heating type Direct heat
Cooling type Water-cooled
Noise(dB) ≤85
Operating Intermittent
Driving mode Internal gear External gear
Reactor material Q345R/Q245R/310S+Boiler plate/Stainless steel
Structure Horizontal rotation
Host weight(T) 20 23 26 28
Reactor size(mm) Ø2200*6600 Ø2600*6000 Ø2600*7500
Ø2800*6600
Ø2800*8000
Space needed 200-300 square meters (Width:10m, Length:20m-30m)
Combustion value 35-50m3



waste tyre recycling plant.jpg



best pyrolysis plant in China for waste tire

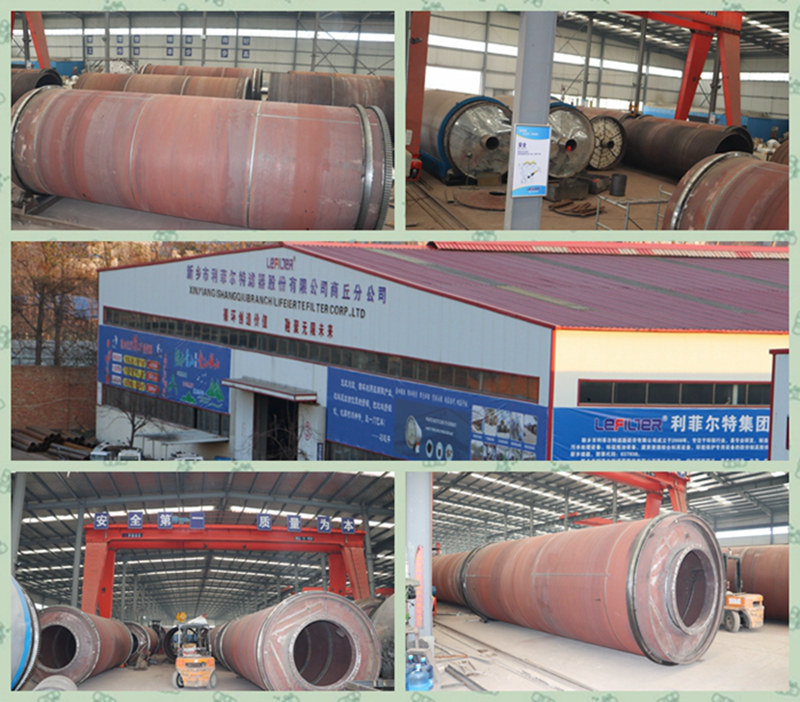

Company Information

Xinxiang Lefilter Filter Corp.,ltd Shangqiu Branch,founded in 2008 is a collection research and development,production,sales and after-sales service in one of the specialized,intergrated company. We're specialized in producing waste tyres/plastic/rubber/oil sludge/MSW pyrolysis plant, Waste tyre Oil/plastic oil/ motor oil distillation plant.All of the machines aims to recycle waste to energy or other resource,which meet our mission.With years of technical R&D,we boast 10 technical patents,International CE,SGS,ISO certifications. Due to our excellent sales team and quality products,Our products have been sold to 130 countries and regions all over the world.Over 30 technical engineers, provide services of plant installation and staff training in domestic or International markets. We provide one-stop service from helping apply licence ,manufacturing and install ing plants to staff training.

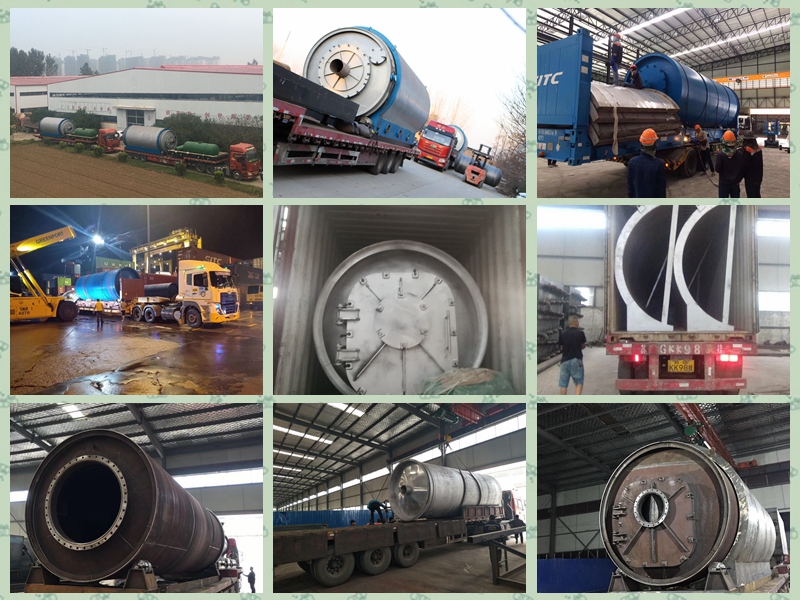

Packaging & Shipping




FAQ



We supply customized plant,we need some basic information:

1.What kind of raw material to recycle?

Tires for car, truck, motorbike...

Plastic of PVC,PE, PP,PS,ABS,bags,acrylic, rubber, medical waste, oil sludgeindustrial waste material...
2.What capacity do you need to recycle per day? (Ton)
3.What fuel do you use?

Coal,gas,wood...

4.What's the voltage in your country?

5.What's the environmental standard  in your  country?



If interested, Call me for detailed pyrolysis plant cost report.


If you wanna to get more details about the above equipment,You can consult our professional engineer and specialized sales team.Leave a message in below form.We will contact with you ASAP.
