Small scale capacity pyrolysis plant-Xinxiang Lifeierte Filter Corp., Ltd

When you intend to do the business of waste tires and plastic recycling to fuel oil, but you worry that if the effect of this pyrolysis plant is good. At this time, the small scale capacity pyrolysis plant may be your best choice.

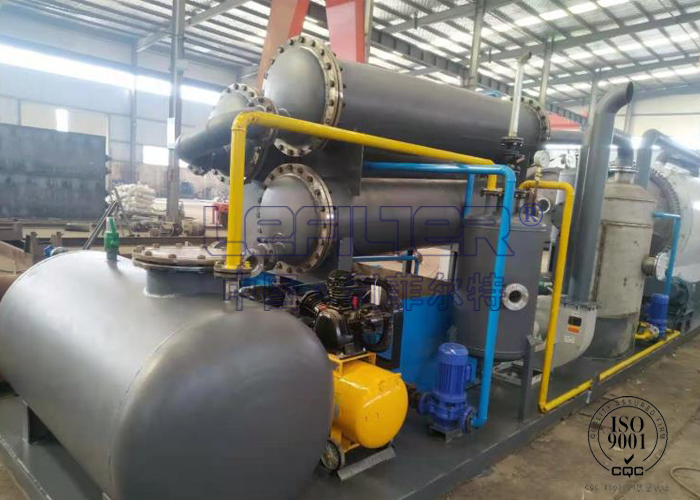

Small scale pyrolysis plant mainly used to recycle of waste by the pyrolysis principle. This small scale pyrolysis equipment can process 500kg-2000kg material. It’s a batch one, for one batch ,it takes about 20 hours. And it needs water to cool the oil gas, and the water is recycled.
For 1T waste tire,it can produce final products which have different valuable application as below:

Output products Yield and uses

Final Products	Yield	Application
Fuel Oil	45%-55%	1. Heating material:sell to cement factory, glass factory, ceramic factory, electric power factory, steel making factory, boiler factory, etc. 2. Used for heavy oil generator for electricity generation. 3. Deep process it into diesel oil then can be used in cars,trucks, tractors, etc.
Carbon Black	30%-35%	1. Make it into pellet or briquette as heating material. 2. Make it into N220, N330, N550 or N660 which is widely used in tire making industry. 3. Make it into plastic grains then sold to plastic industry.
Steel Wire	30%-35%	1. Sell it to iron and steel factory directly. 2. Sell it to steel distributors.
Flammable Gas	8%-10%	1. Recycled into furnace to heat reactor instead of coal/wood/oil/natural gas. 2. Store it then supply the pyrolysis equipment heating,it’s recycling.

Pyrolysis plant’s technical parameters:

Items	Contents
Input-Raw Materials	Waste tire/rubber/plastic/Medical waste/municipal solid waste/waste organic glass
Final products	Fuel oil, N220, N330 carbon black, steel wire, flammable gas.
P/N	LES-2266	LES-2666			LES-2675		LES-2880
Capacity/24h	6Ton/Batch	10Ton/Batch			12Ton/Batch		15Ton/Batch
Oil production(T)/24h	2.7-3.2	3.6-4			4.5-5		5.4-5.8
Power	5.5KW	5.5KW			7.5KW		7.5KW
Cooling water(T/h)	4	5			6		8
Rotate speed(r/min)	0.4
Heating type	Direct heat
Cooling type	Water-cooled
Noise(dB)	≦85
Operating	Intermittent
Driving mode	Internal gear		External gear
Reactor material	Q345R/Q245R/310S+Boiler plate/Stainless steel
Structure	Horizontal rotation
Host weight(T)	20		23	26		28
Reactor size(mm)	Ø2200*6600		Ø2600*6600	Ø2600*7500		Ø2800*6600
Space needed	200-300 square meters (Width:10m, Length:20m-30m)
Combustion value	35-50m3
Note	We supply customized plant,we need some basic information: What kind of raw material to recycle? Tires for car, truck, motorbike... Plastic of PVC,PE, PP,PS,ABS,bags,acrylic, rubber, medical waste, oil sludge industrial waste material... What capacity do you need to recycle per day? (Ton) What fuel do you use? Coal,gas,wood...

Our services:

Pre-Sale

♦Provide technical guidance and supporting equipment and materials;
♦ Answer customers' questions, assist customers or design laser processing scheme for customers from the technical point of view;
♦ Provide equipment exhibition hall for customers to visit, proofing and test machine.

Selling

♦ Assist customers to plan and design the water and electricity equipment of the production site;
♦ To provide customers with a full set of operating instructions;
♦ Provide free training to the customer's equipment operators.

After-Sale

♦1 Years warranty for whole set machine;
♦ During the warranty period, the company will also send technicians to the site from time to time to carry out technical patrol and answer the questions raised by customers.
