Waste PMMA material recyclling pyrolysis plant

Brief introduction:


Pyrolysis technology is an industrial process of breaking down large molecules of plastic/tyre into smaller molecules of oil, gas and carbon black.
The technology allows governing authorities to better manage landfills by being able to redefine what is actually non-recoverable and what will no longer be acceptable to consign to landfill.
40% of plastics ends up in landfill despite recyclers best efforts. Some of the reasons are as simple as partial organic or biological contamination and others are due to mixed polymer lamination as part of consumer packaging manufacture which are not seen as economically viable to recycle in the conventional manner.
Almost all of these materials are suitable for treatment in our process and are converted into usable new products, liquid fuels, gas and thermal energy.
Although the technology can process most plastics we typically target plastic waste destined for landfill or incineration due to the improved environmental impact and economic benefits.

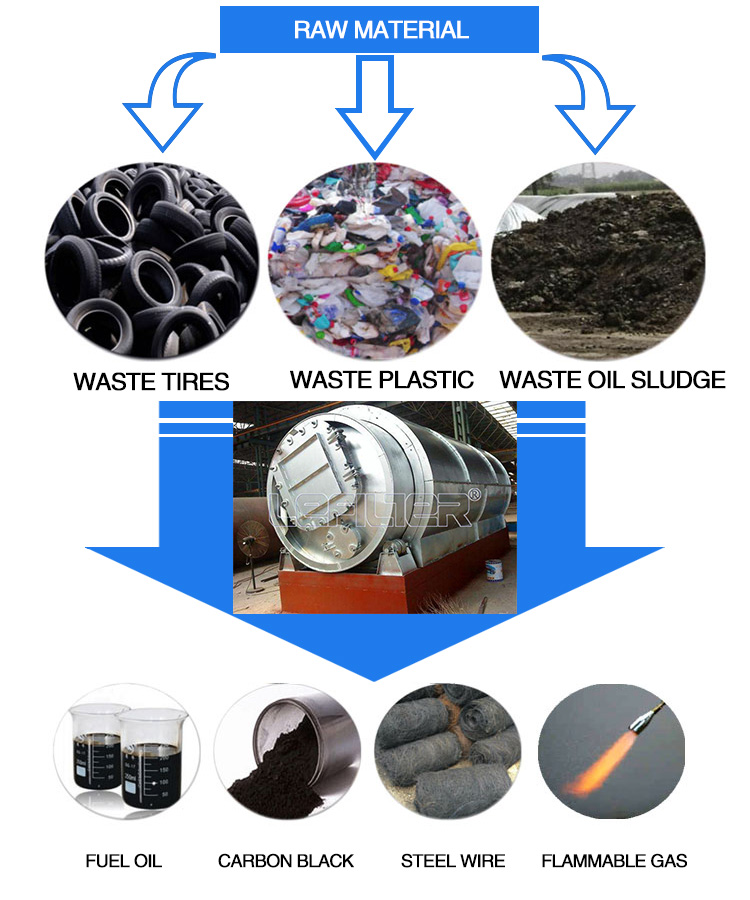

For 1T waste tire,it can produce final products which have different valuable application as below:

Final Products Yield Application
Fuel Oil 45%-55% 1. Heating material:sell to cement factory, glass factory, ceramic factory, electric power factory, steel making factory, boiler factory, etc.
2. Used for heavy oil generator for electricity generation.
3. Deep process it into diesel oil then can be used in cars,trucks, tractors, etc.
Carbon Black 30%-35% 1. Make it into pellet or briquette as heating material.
2. Make it into N220, N330, N550 or N660 which is widely used in tire making industry.
3. Make it into plastic grains then sold to plastic industry.
Steel Wire 30%-35% 1. Sell it to iron and steel factory directly.
2. Sell it to steel distributors.
Flammable Gas 8%-10% 1. Recycled into furnace to heat reactor instead of coal/wood/oil/natural gas.
2. Store it then supply the pyrolysis equipment heating,it’s recycling.


Technical Data:

Items Contents
Input-Raw Materials Waste tire/rubber/plastic/Medical waste/municipal solid waste/waste organic glass
Final products Fuel oil, N220, N330 carbon black, steel wire, flammable gas.
P/N HJA-7 HJA-8 HJA-9 HJA-10
Capacity/24h 6-7Ton/Batch 8 -9Ton/Batch 10-11Ton/Batch 12-13Ton/Batch
Oil production(T)/24h 2.7-3.2 3.6-4 4.5-5 5.4-5.8
Power 4KW 4.5KW 5.5KW 7.5KW
Cooling water(T/h) 4 5 6 8
Rotate speed(r/min) 0.4
Heating type Direct heat
Cooling type Water-cooled
Noise(dB) ≦85
Operating Intermittent
Driving mode Internal gear External gear
Reactor material Q345R/Q245R/310S+Boiler plate/Stainless steel
Structure Horizontal rotation
Host weight(T) 20 23 26 28
Reactor size(mm) Ø2200*5100 Ø2200*6000 Ø2600*6600 Ø2800*6600
Space needed 200-300 square meters (Width:10m, Length:20m-30m)
Combustion value 35-50m3
Note We supply customized plant,we need some basic information:
What kind of raw material to recycle?
Tires for car, truck, motorbike...
Plastic of PVC,PE, PP,PS,ABS,bags,acrylic, rubber, medical waste, oil sludge industrial waste material...
What capacity do you need to recycle per day? (Ton)
What fuel do you use?
Coal,gas,wood...
